35,000.00৳
Catalog Number: 721231
| Measuring Range | 0 – 14 pH |
| Operating Temperature | -5 – 80 °C |
| Sensor Material | Glass Membrane |
| Sensor Shape | Cylinder |
| Reference | Ag/AgCl |
| Diaphragm | 2 x Ceramic |
| Electrolyte | Gel, 3 M KCl |
| Integrated Temperature Sensor | NTC 30 kΩ |
| Outer Material | PSU |
| Connection | pH: BNC Temp: Banana |
| Length | 120 mm |
| Diameter | 12 mm |
| Cable Length | 1.5 m |

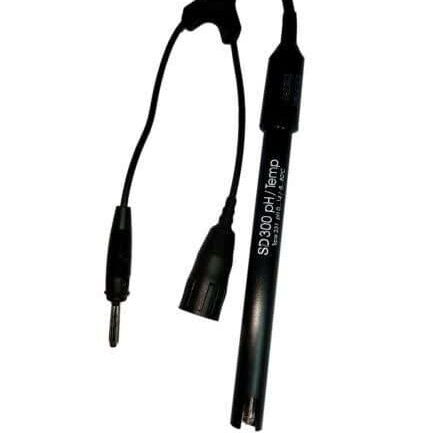

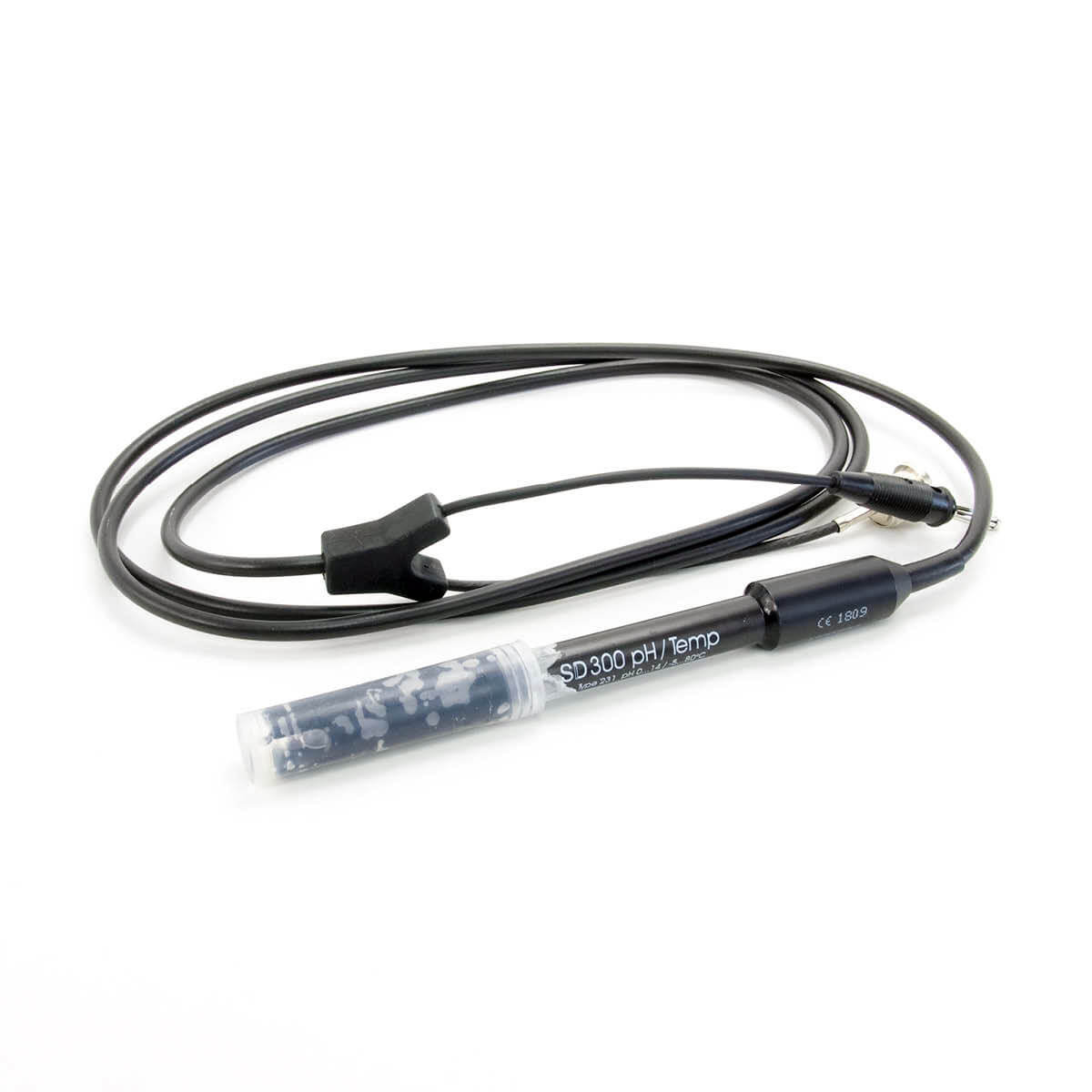

The SD pH electrode type 231 with gel electrolyte is not only low-maintenance, but also features fast response times. With the use of two ceramic diaphragms, measurements in water samples with low ionic conductivities are no longer a challenge. The integrated temperature sensor (NTC 30 kΩ) ensures that your pH measurement is not affected by temperature fluctuations and can be individually adapted to each sample.
The robust plastic housing made of SAN provides the necessary mechanical stability and protects the cylindrical glass membrane from breakage. The BNC connection is suitable for all pH meters equipped with a BNC socket.
